TF-X7

Cycles/min: up to 35

Filling range: 100 - 500 ml

Thermoforming area: 350 mm (w) x 150 - 220 mm (h)

Description

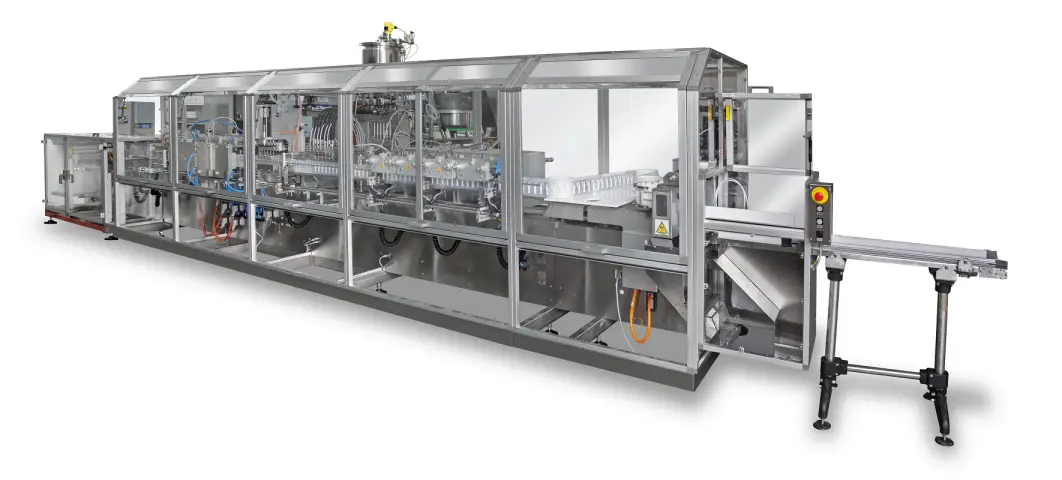

Fully automatic machine, with high-level hygiene and technological standards, designed to reach high performances and productions for food and non-food applications. The TF X7 machine is suitable for the production of squeezable, peelable, stand-up and non stand-up portion-packs/bottles.

The machine can be equipped with several options such as: straw applicator, cap applicator, single and/or double labelling machine, “Ultra-Clean” package and automatic visual cameras to check product quality. The TF X7 machine thermoforms starting from a single reel of plastic material and, thanks to its exclusive balcony structure, makes cleaning, maintenance and tooling change-over operations simple and quick.

Solutions pack with TF X7

Squeezable

Squeezable solutions for liquid products

Peelable

Peelable solutions for products that solidify after the filling

Squeezable with Cap

Squeezable solutions with Cap for liquid products

Squeezable with Straw

Indicative machine output

2 pcs/cycle 500ml

3 pcs/cycle 300ml

5 pcs/cycle 100ml

6 pcs/cycle

80ml

21 pcs/cycle 1ml

18 pcs/cycle 10ml

14 pcs/cycle 20ml

7 pcs/cycle 50ml

*Indicative output that can vary depending on shape definition.

Technical Features

• Mould height: 100 - 220 mm

• Single or double dosing unit for liquids and semi-dense products

• High precision cutting unit

• Possibility to use special barrier materials such as EVOH or PVDC to extend product shelf-life

• Reel width range: between 200 – 440 mm

• Reel holding unit with 2 powered shafts and a buffering unit that allows the change-over of the plastic reel without stopping the machine.

• Filling range: 100 – 500 ml

• Number of cycles/min.: up to 35

• Thermoforming mould area 350 mm (w) x 150 - 220 mm (h)

• Overall dimensions: 9700 mm X 3550 mm X 2500 mm (h)

• Total machine weight: 4.200,00 kg

• Air consumption: 800 Nl/min

• Power consumption 65 A

• Plastic film thickness: 250 - 480 µm
